New MMDVM HS Dual Hat Duplex Hotspot Board With USB + 2.2inch OLED Display Support P25 DMR YSF NXDN For Raspberry pi
SPECIFICATIONS
Accessories Type: Receiver/Transmitter/Transceiver
Brand Name: LUSYA
Choice: yes
Compatible Brand/Model: None
Electric: No
High-concerned chemical: None
Model Number: DUALMMDVM2.2
Origin: Mainland China
With USB: Yes
is_customized: Yes
Duplex variant of MMDVM_HS_Hat

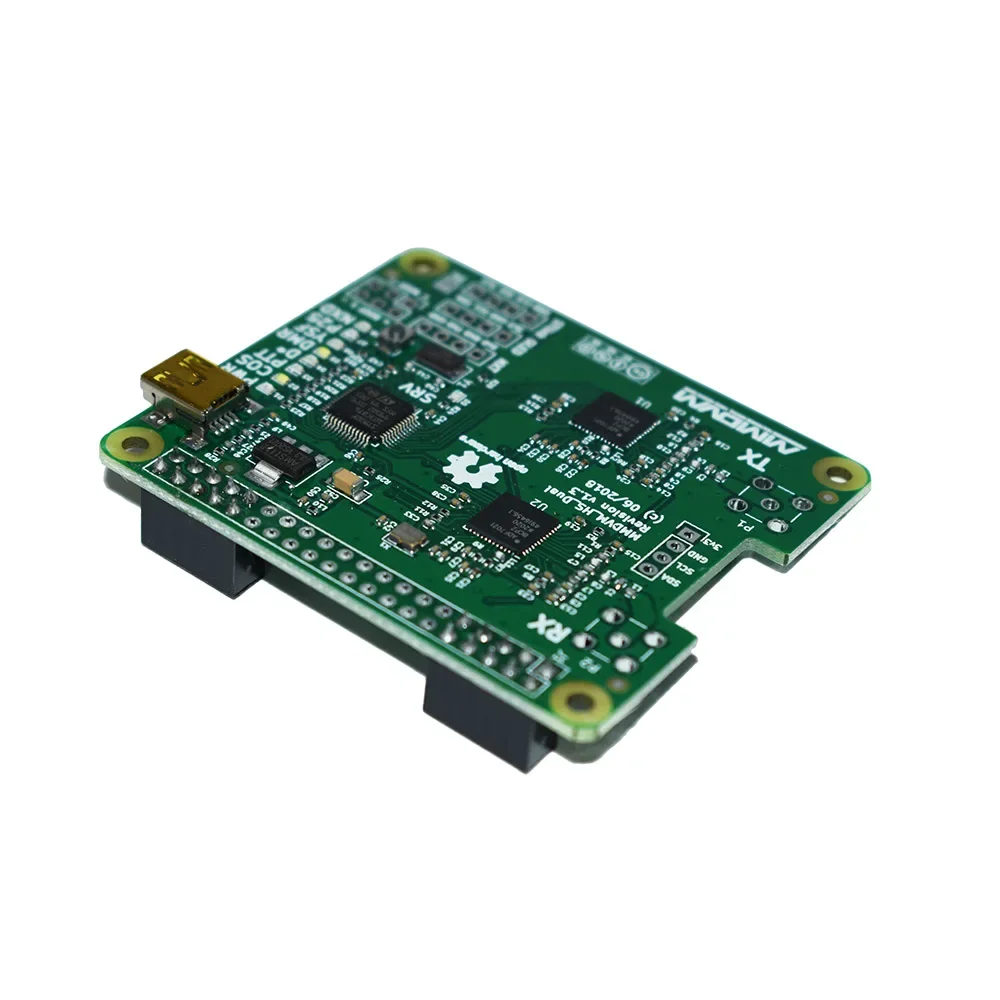

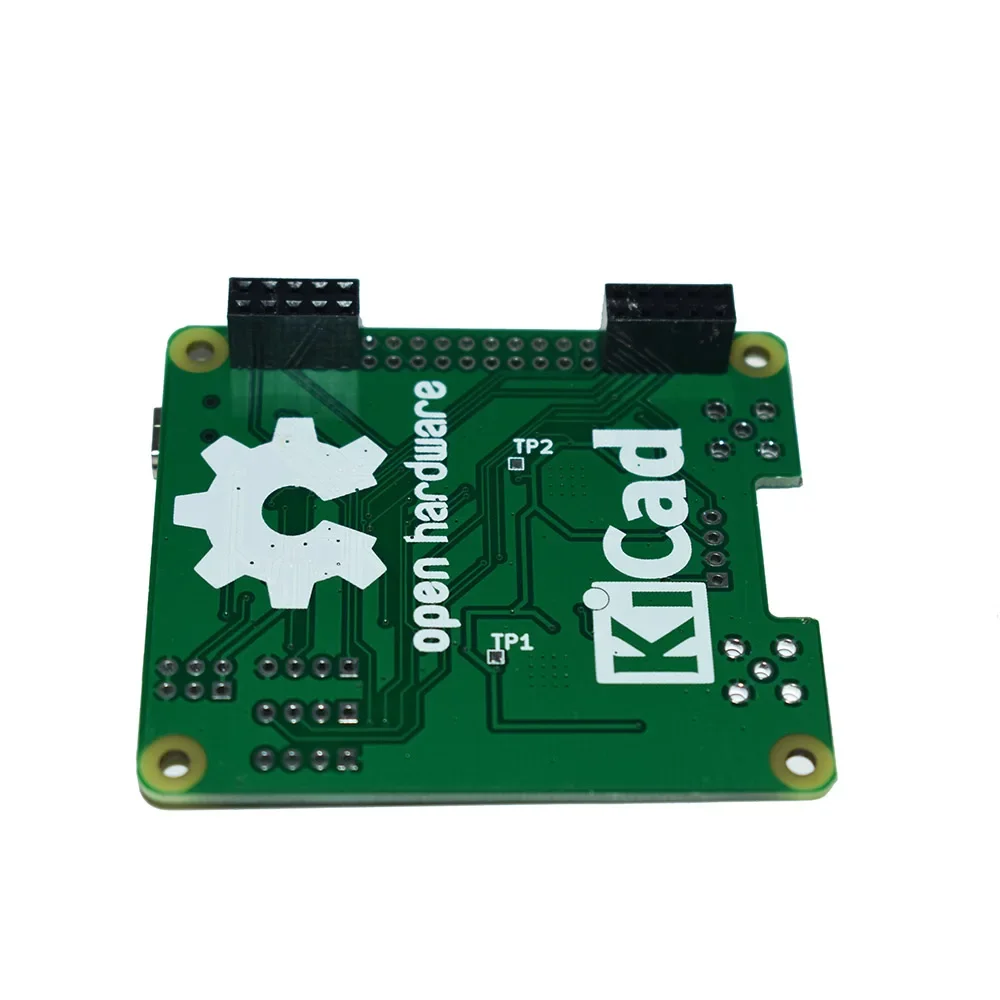

This PCB uses the MMDVM_HS . It has two ADF7021 onboard and allows for duplex operation with two time slots on DMR.
The default bit error rate is less than 5%, and the default offset is 0. If the bit error rate is more than 5%, as long as the signal can be received, it can be corrected by offset.
Revision 1.3
An accidentially deleted 3v3 wire has been added back to the PCB layout. BOM, Mouser cart and stencil stay the same as for rev1.2.
Features:
- High performance 32-bit ARM processor
- Fully tested
- Supports DMR, P-25,D-Star and System Fusion
- Onboard LEDs to show status (Tx,Rx,PTT,Mode)
- Up to 10mW RF power
- SMA antenna connector,Antenna included

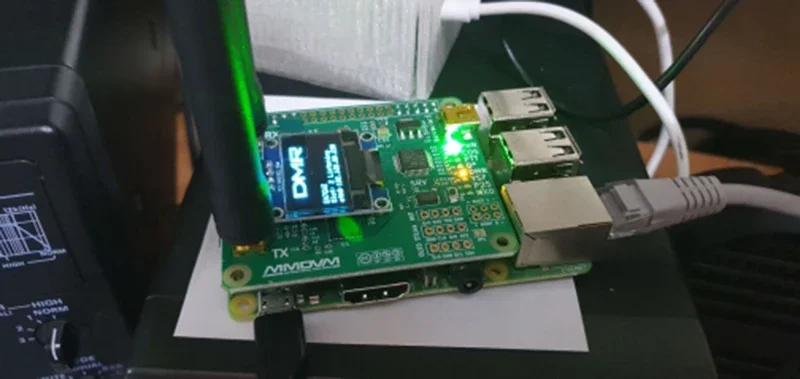

- Mounts cleanly on all current Raspberry Pi's including the Pi Zero
- The firmware is pre-loaded and is easily upgraded via software.
- Open source 3D printable case available
- UHF 430-450 MHz,433mhz and 900MHz
VHF 144 220 Opera FREQ
The upper part is TX,the lower is RX antenna.
UHF+VHF
SMA,antenna

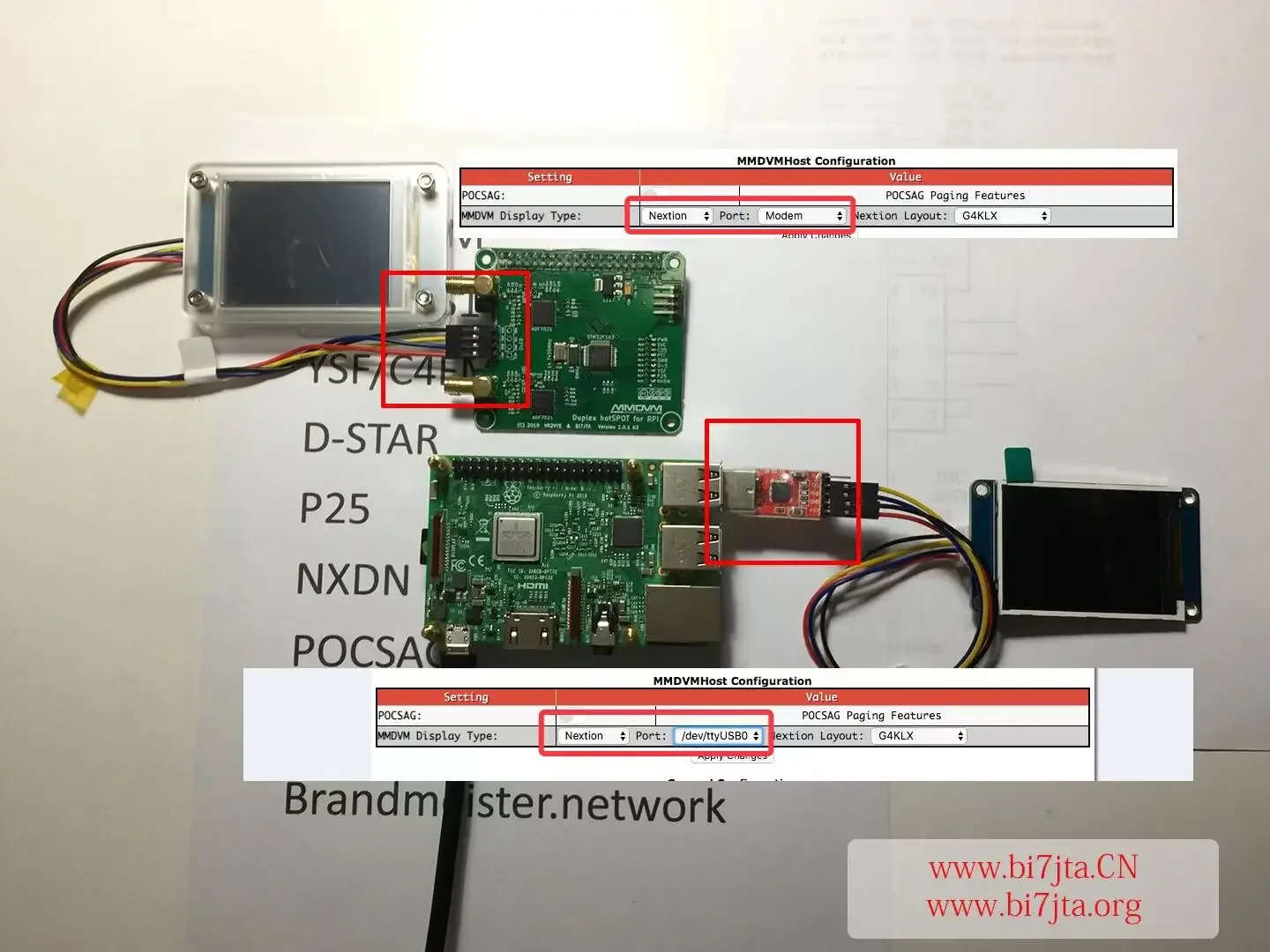

Modem select:STM32_HS_GPIO
Set TX frequency,RX frequency
TX,RX frequency had better 10M or more apart.
SLOT1,SLOT2 support.
Package List:

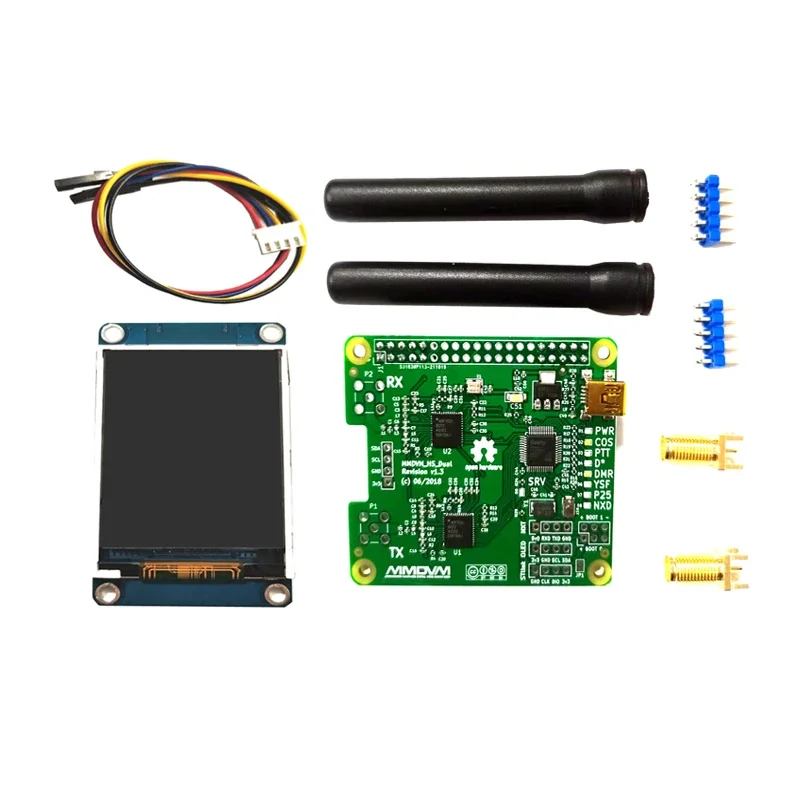

- MMDVM duplex HotSPOT Module x1
- Antenna x 2
- SMA socket x 2pcs ,

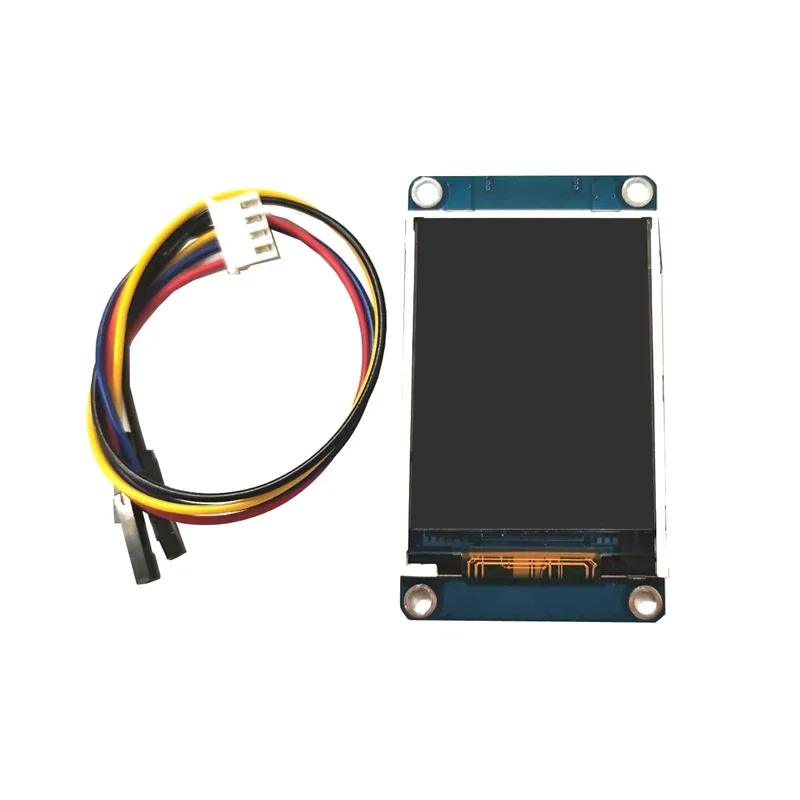

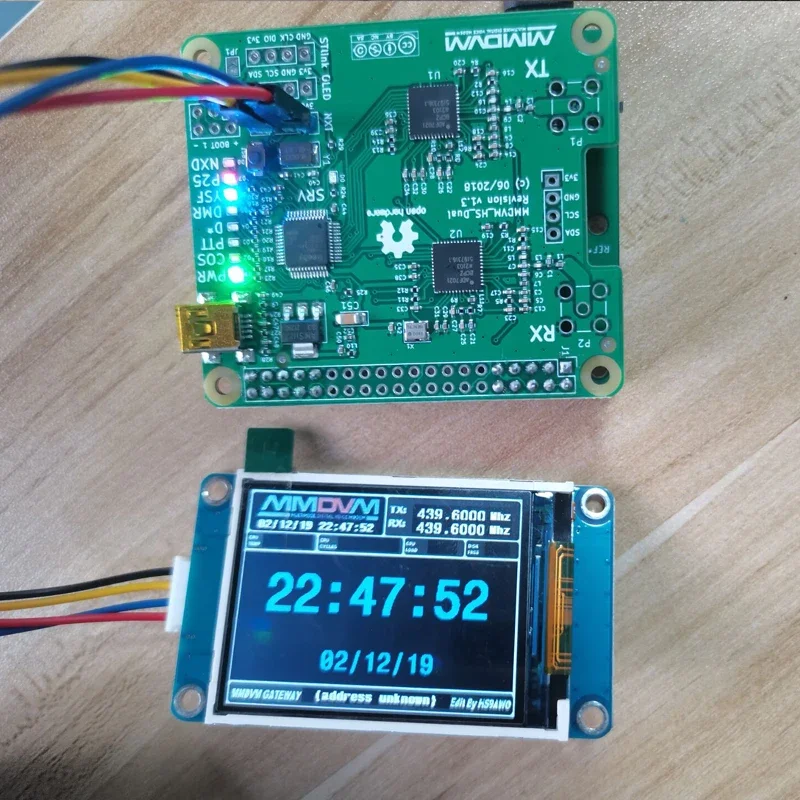

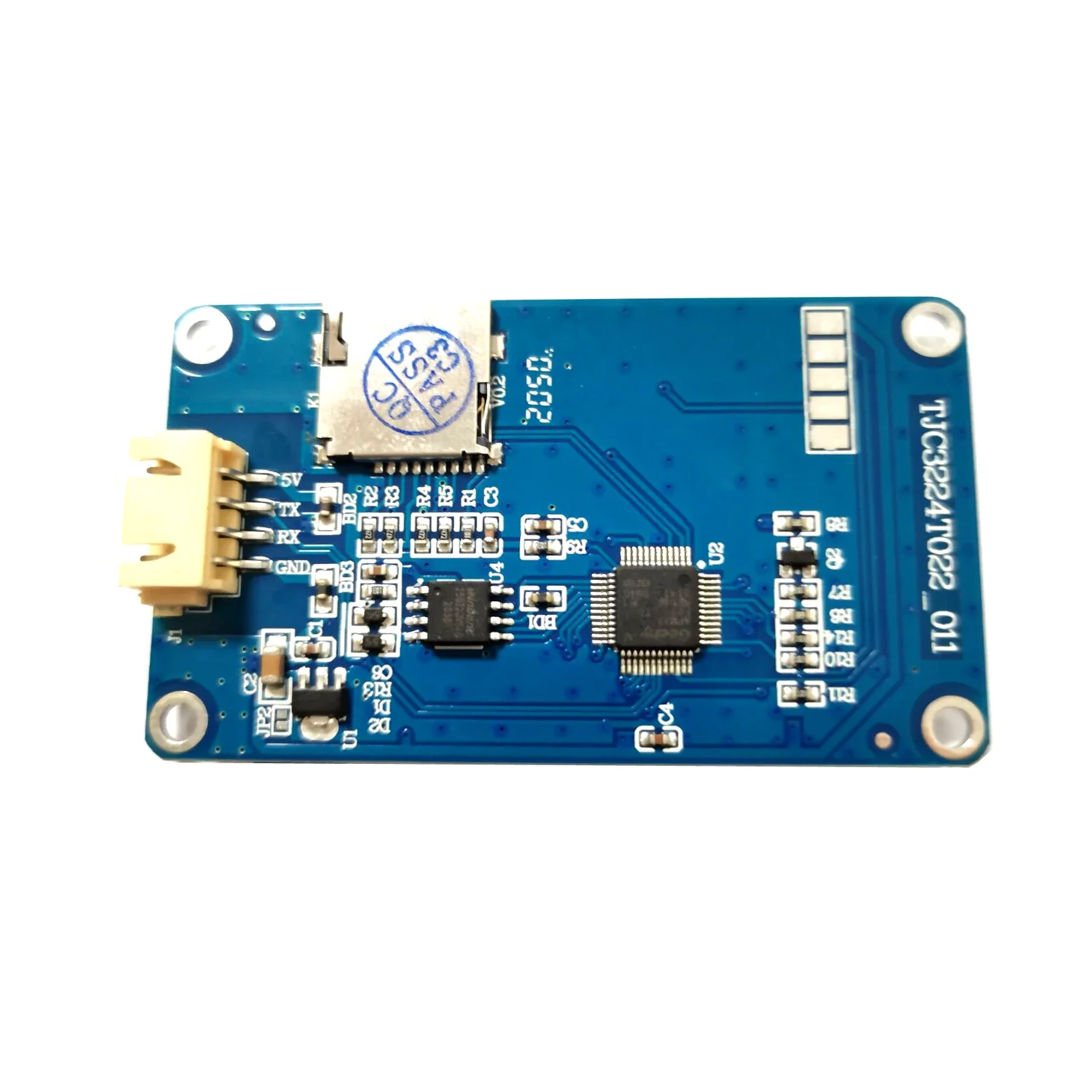

- 2.2 inch OLED display
